Installing Dual Controls Enstrom F-28 F

Right here is our middle seat for when you're having a pilot plus two passengers. To put the controls back in, we remove the seat cushion. We've got a hole right here in the top for a pin and a notch here that goes inside to lock the control in. Pull up, the pin stays back here on a little wire. We insert the pin, we get the hole lined up, push the top of the pin down to lock it in, and that's how we install the collective. Once it's down, make sure the throttle works correctly, and then on the preflight, we'll release the collective and make sure it's all working. That it's firmly in place, pin's in there, that was working, and here we go. Now we'll move on to the pedals.

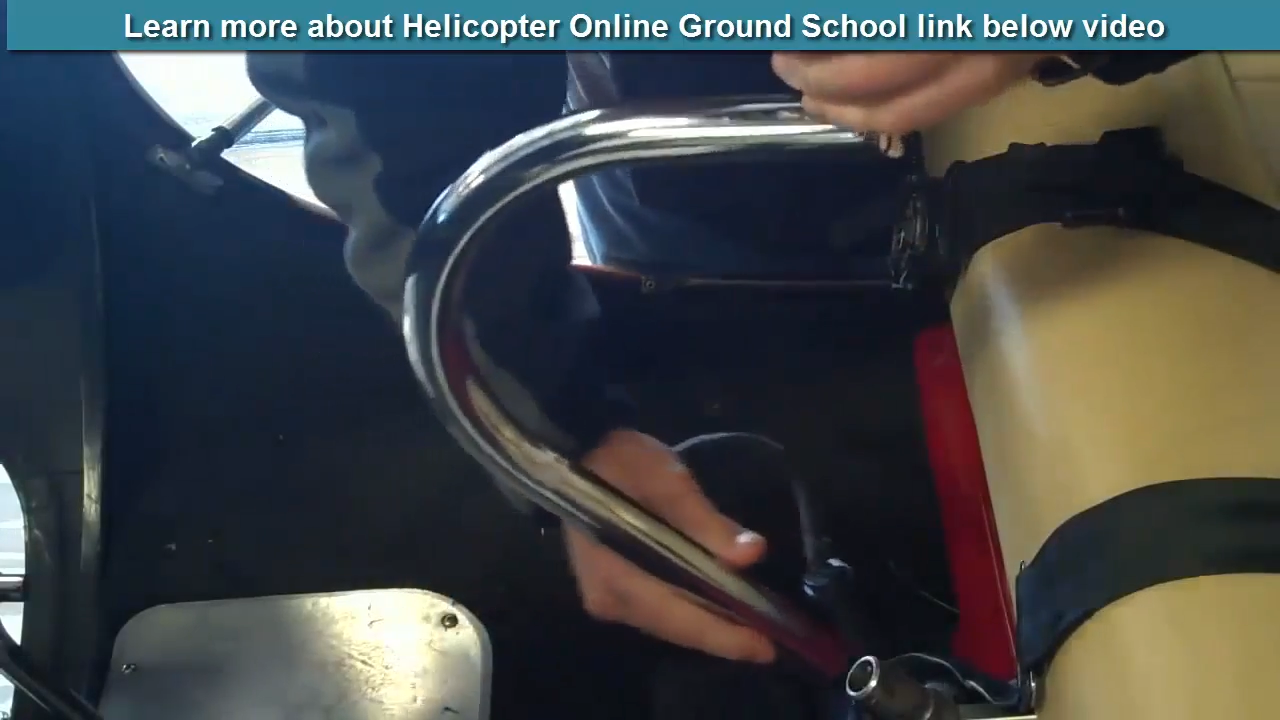

We have the collective firmly in place, now we're going to reinstall the pedals. Put the pins in here, when we remove them, so that we don't lose them, so we take them back out, insert here. There's three different positions you can put it in. The majority of the time, the center position works pretty good. We put the pin through this way. The holes line up, push the pin through, and then we put the locking pin here so they won't catch on your feet. Take this out, slide it in there, center position, and lock in the pin. Nice and secure, ready to go.

Installing Dual Controls Enstrom F-28 F

We have the pedals reinstalled, the collective reinstalled, now we're going to reinstall the cyclic, which slides right in here on top, and we have two separate pins. We have another pin for this side. Plug this back in so we can use our radios. Nice and secure. There we go. Controls back in.

Installing Dual Controls Enstrom F-28 F
